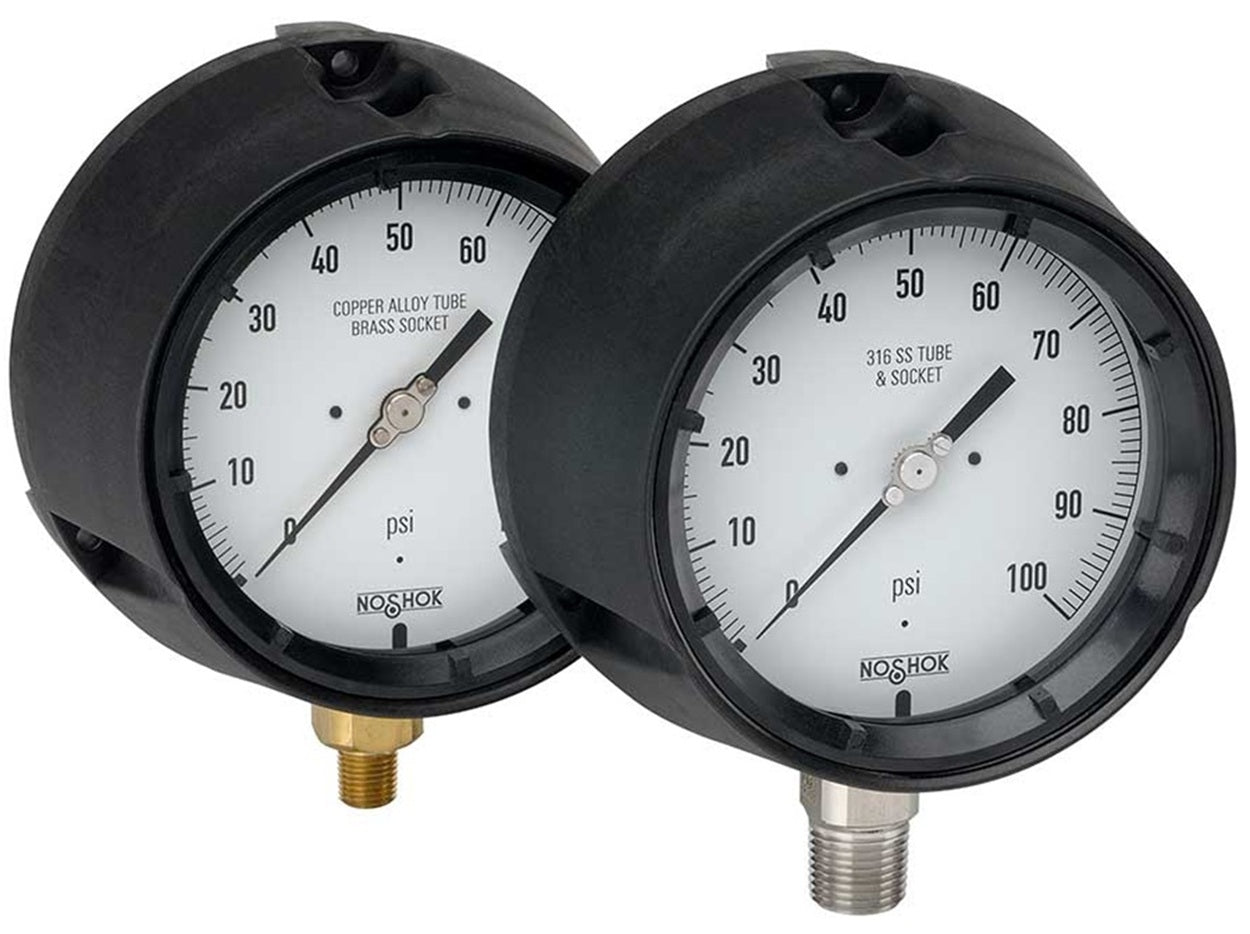

Noshok 600/700 Process Pressure Gauges

   VIEW SPEC SHEET

• Turret style dry (field fillable) and liquid filled process gauges
• Vacuum and compound ranges through 0 psi to 15,000 psi
• 4-1/2" gauge sizes
• Black Polypropylene safety case with solid front and blow-out back
• 316 Stainless Steel and Brass wetted parts

1. Working Pressure Limitations
1. Dynamic Pressure
   The working pressure should be limited to 60% of the dial range.
   Max. 0.9x full scale.
2. Static Pressure
   The working pressure, where no sharp fluctuations occur, should be limited to 90% of the dial range.
   Max. 1x full scale.
3. Short term max. 1.5x full scale (<10,000 psi).
